NIRVANA combines the unbeatable style of a Sanlorenzo yacht with the unique features of theground-breaking SX series: a huge beach club, unparalleled volume, efficient and silent cruising, an air-conditioned sundeck with a hard top and sliding windows and an on-board life that will bringyou closer to the sea.
Year
2021
Location
Ionian Islands, Greece
Cabins
4
Crew
5
LOA
76ft / 23m
Beam
6.6m
Cruising Speed
16
Max Speed
22
Engines
2 x VOLVO IPS1050 800HP
Reference
37712
Price
€3,950,000 Tax Not Paid
SANLORENZO SX76 BUILT BY SANLORENZO, ITALY
Hull #52 built in 2021, delivered in June 2021
CONSTRUCTION
Hull, deck and superstructure in composite material, with appropriately spaced transverse frames and girders, which run longitudinally.
The main deck and the superstructure are a sandwich construction laminated with a closed cell foam core.
Two watertight bulkheads; one to divide the engine room from the accommodation area and another in the bow to separate accommodations from technical storage.
The hull will have a partial double bottom where the structural tanks for fuel, fresh water, grey and black water will be fitted.
Teak is laid to the beach club, cockpit, side decks, bow and flybridge - 12mm thick glued directly onto the deck
DIMENSIONS
Length overall - 23.75 m
Maximum beam - 6.60 m
Displacement - half load - 63 t
Displacement - full load - 67 t
Waterline length - half load - 21.05 m
Waterline length - full load - 21.15 m
Draft - half load - 1,58 m
Draft - full load - 1,65 m
FOUR CABIN LAYOUT WITH CREW CABIN
Master cabin amidships and VIP cabin at bow
MAIN DECK

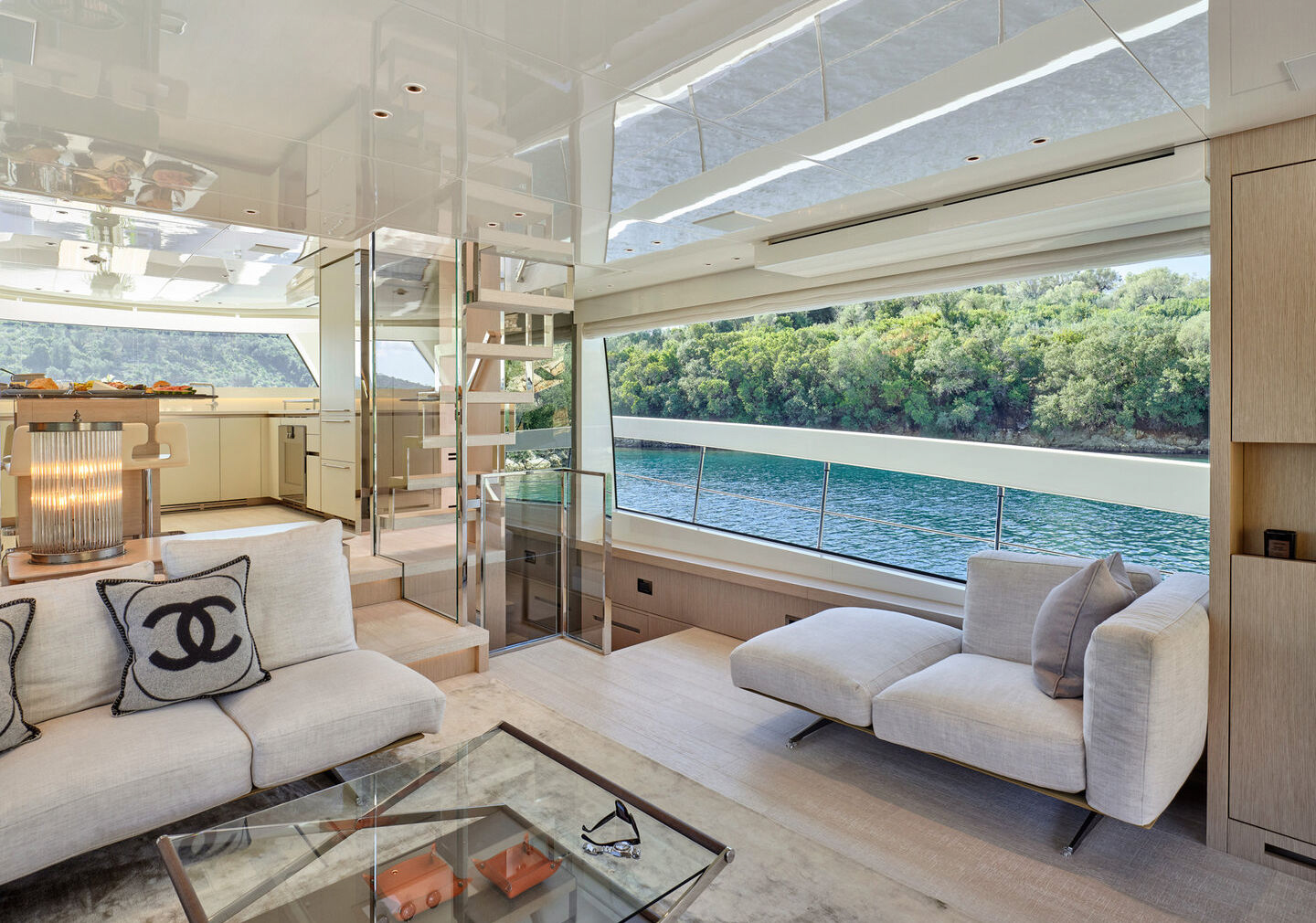

Saloon - Large L-shaped sofa and coffee table to port, chaise lounge to starboard, 50" TV in cabinet, storage cabinet, 18 bottle wine cooler, upgraded wooden floor to saloon with rug and roman blinds to windows.

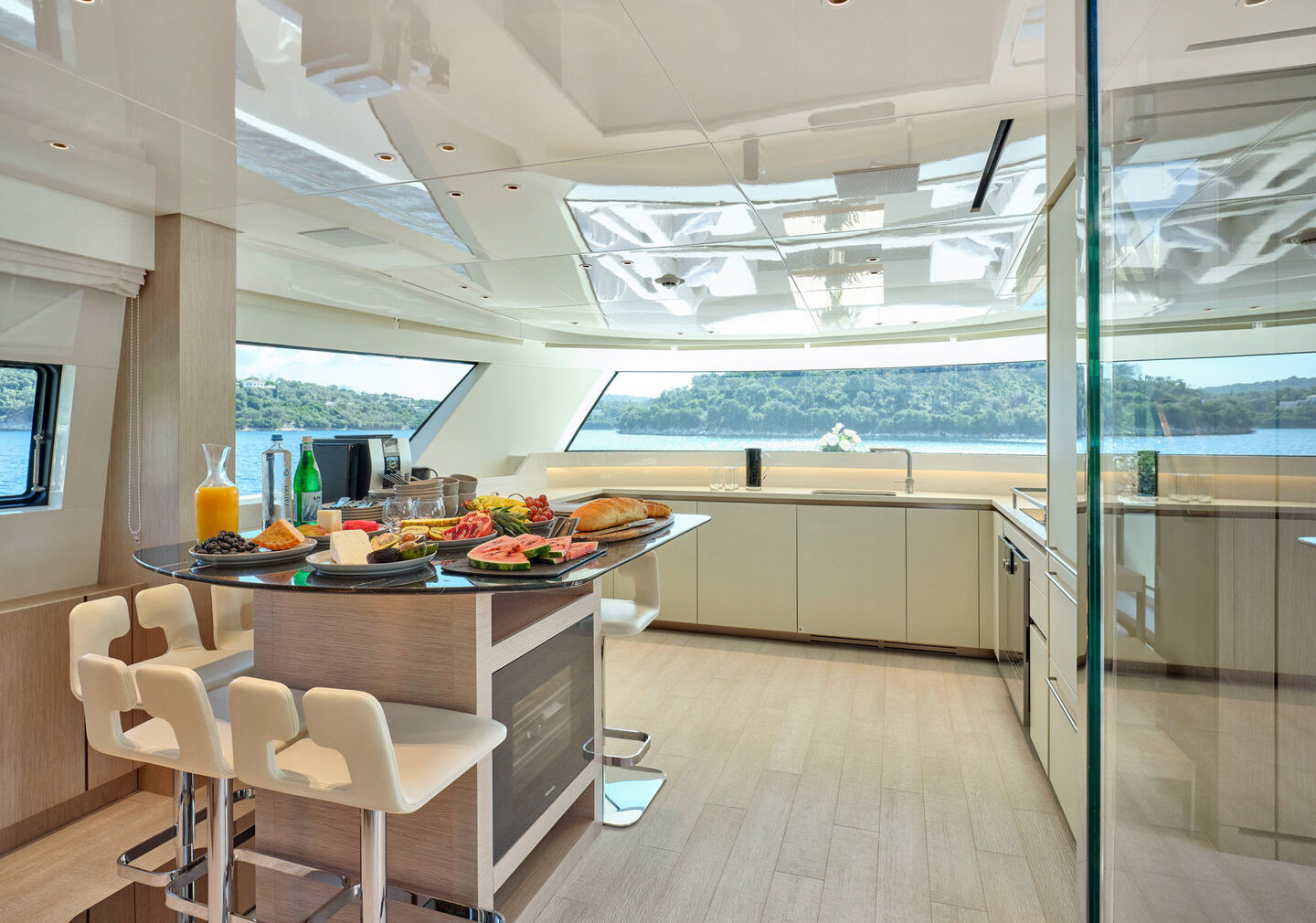

Galley and Dining Room
Open plan with galley cabinets positioned around forward bulkheads and off centre breakfast bar table and high stool chairs.
Large Gaggenau oven, Large Gaggenau induction hob, extractor fan, sink, dishwasher, Subzero fridge / freezer.

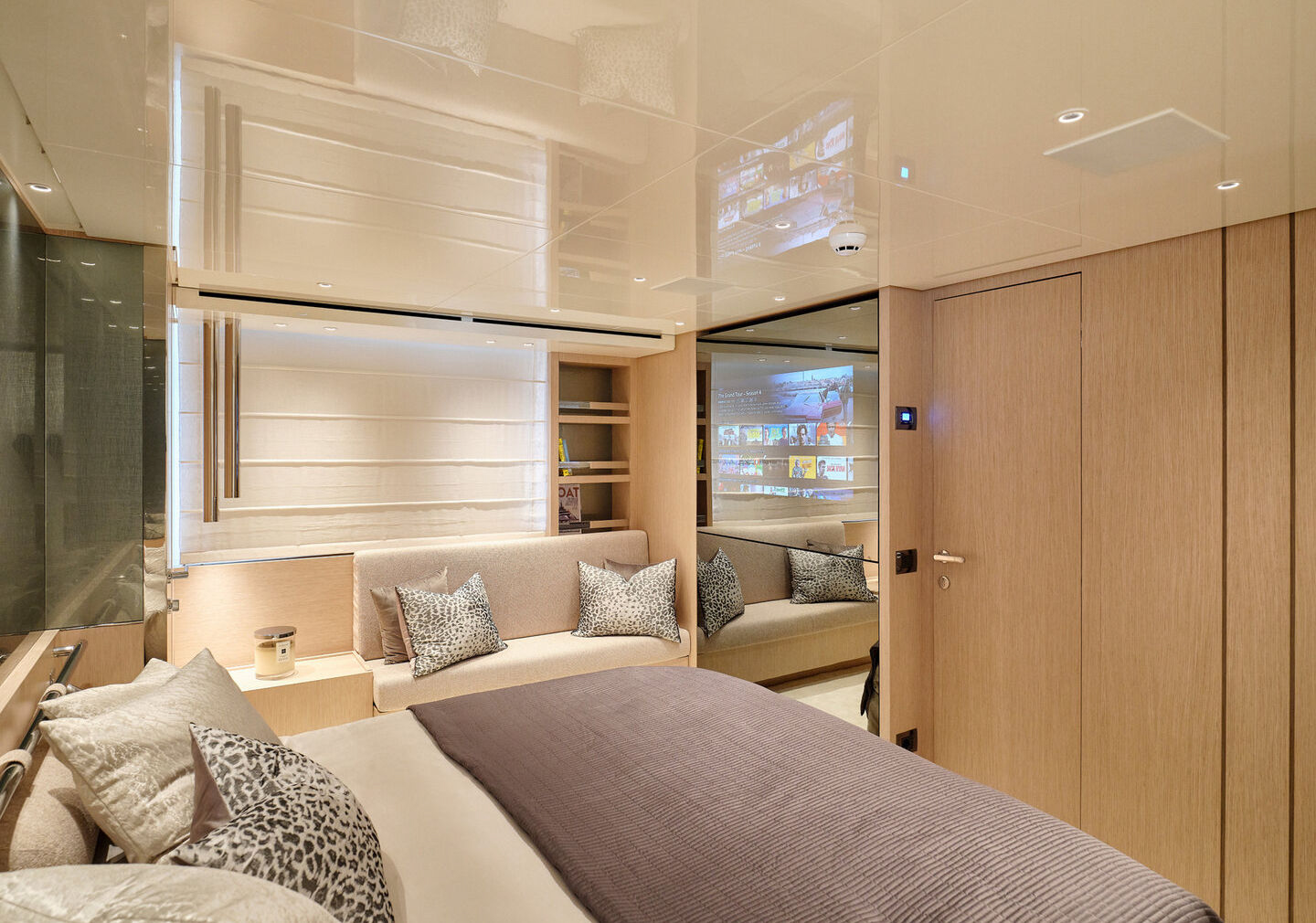

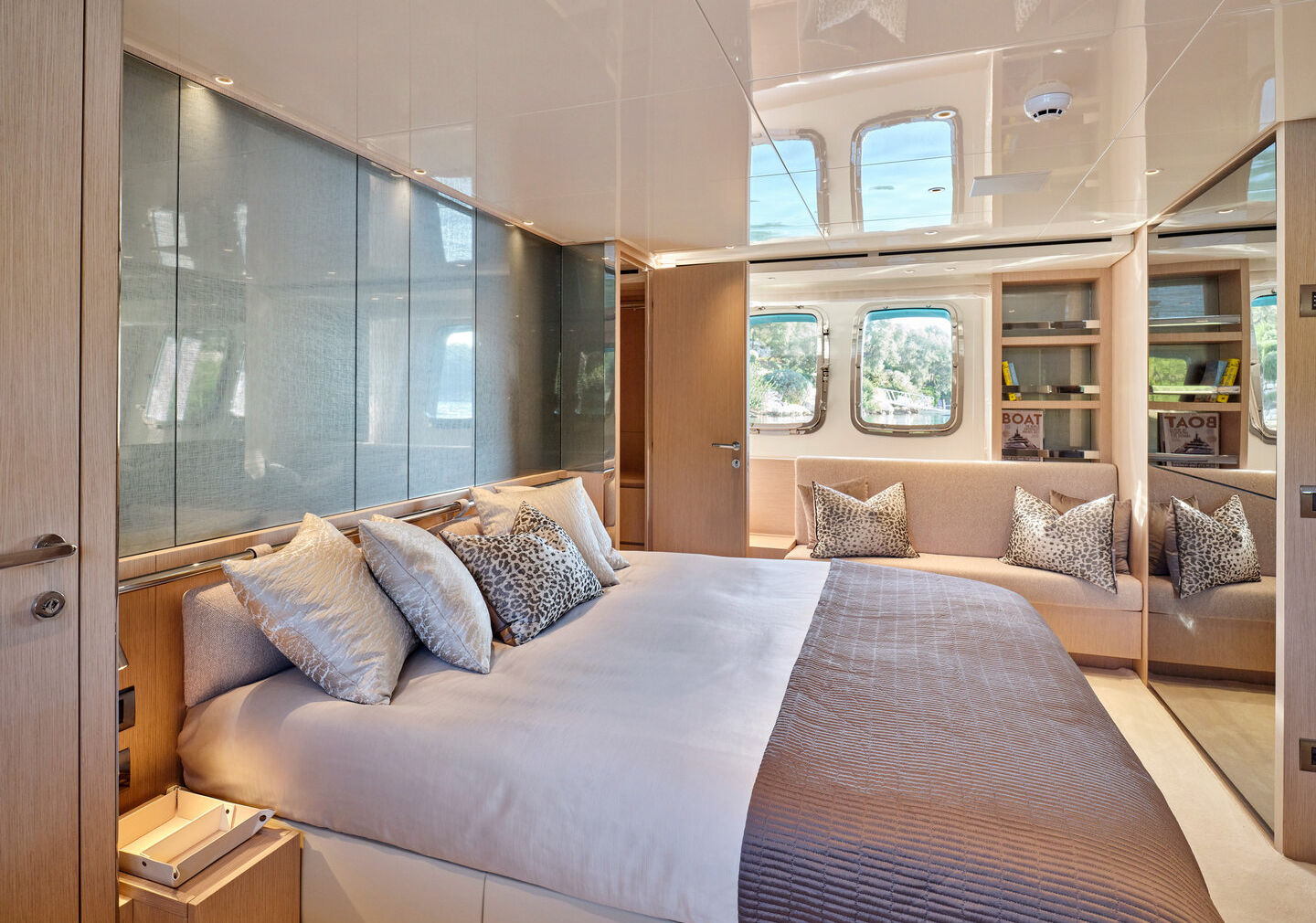

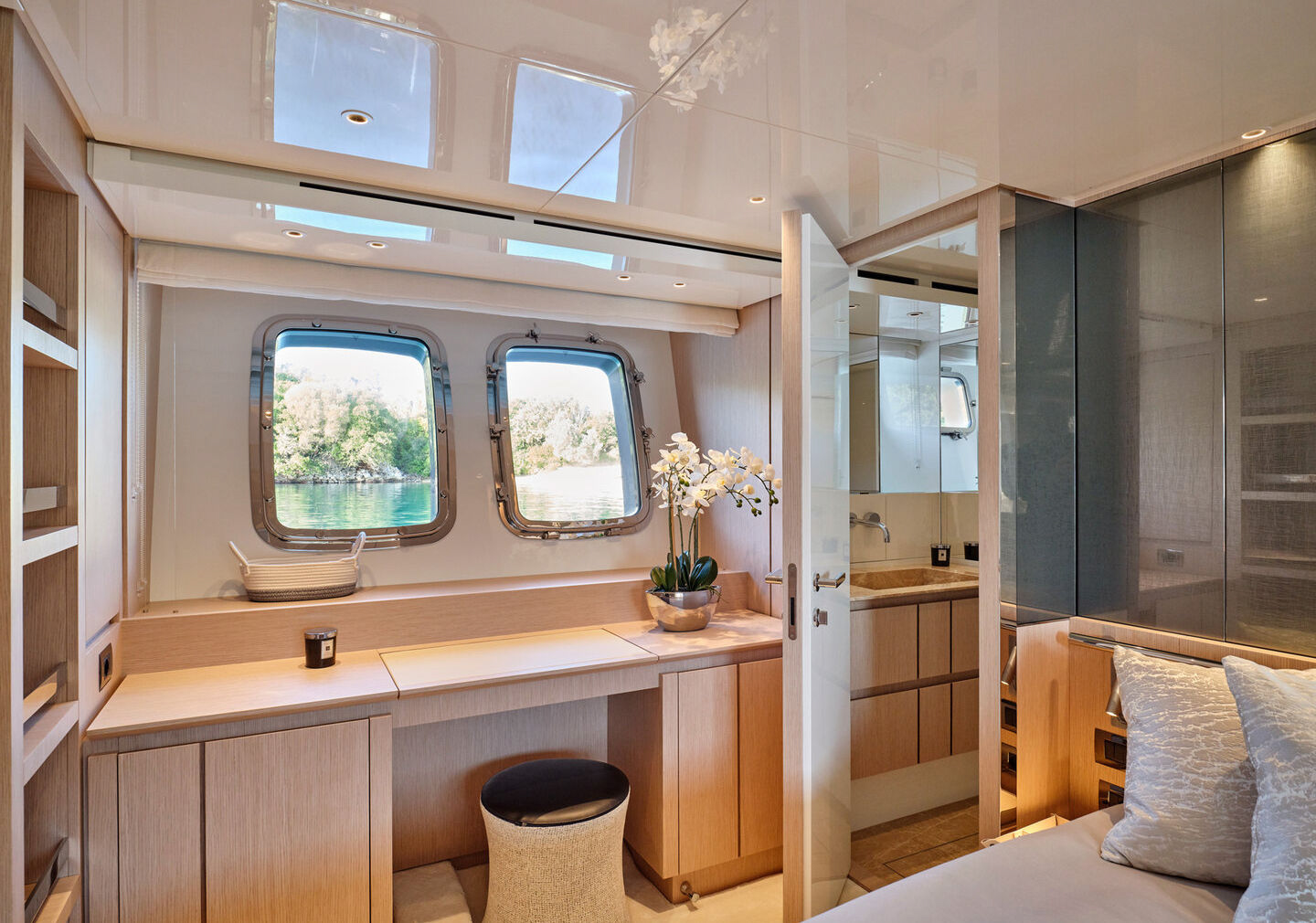

Master Cabin - Double bed with 4 draws, bedsides tables, LED lighting underside of bed and bedside tables, walk-in wardrobe, vanity desk to starboard with seat, sofa to port, carpet to floor, 43" TV behind stopsol mirror, roman blinds and black out blinds.
Master Cabin Bathroom – Marble top with integrated sink, marble floor, shower with rain shower, WC with integrated bidet, hydrobrush, heated towel rail and storage - Upgraded shower wall in Emperador marble
VIP Cabin - Double bed with 4 draws, bedside tables, cupboards, handing locker, sofa, carpet to floor, 32" TV in up/down cabinet and LED lighting under bed and bedside tables.
VIP Bathroom – marble floor, marble top with integrated sink, shower with rain shower, WC with integrated bidet, storage

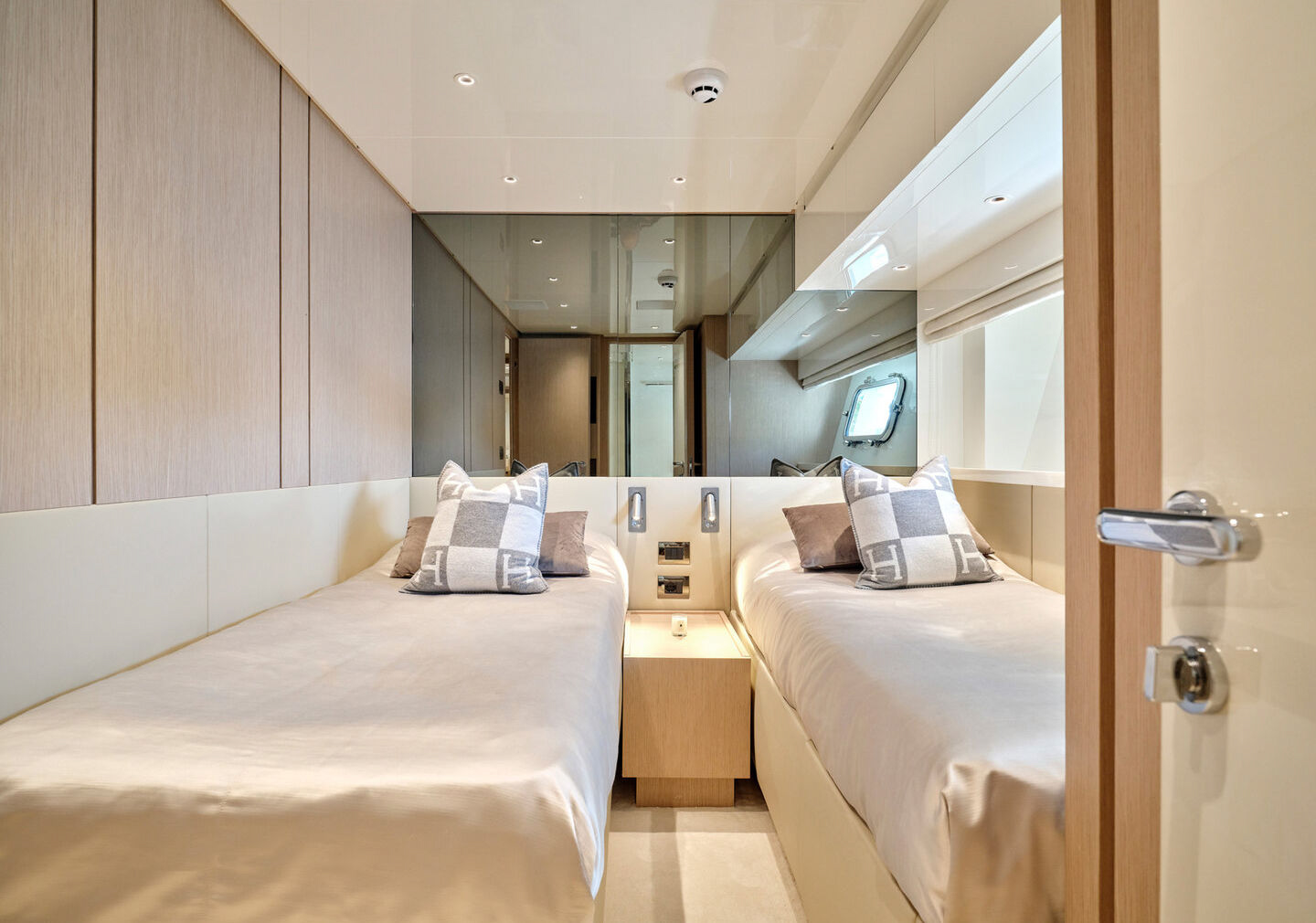

Guest Cabin port side - Two single beds with drawers, bedside table, carpet flooring, wardrobe and 24" TV in custom cabinet.
Bathroom – marble floor, marble top with integrated sink, shower and WC.
Guest Cabin starboard side - Two single beds with drawers that slide to form double, bedside table, carpet flooring, wardrobe and 24" TV in custom cabinet.
Bathroom - marble floor, marble top with integrated sink, shower and WC.
Crew Quarters - Accessed from cockpit with two beds and cupboard. Laundry with Miele washer and tumble dryer. Access to the engine room. Pre-wire for additional ship control monitor.
Crew bathroom - sink, shower and WC.
EXTERIOR
Stern Cockpit - Teak floor, sofa and two Roda chairs with stone top coffee table
Beach club - teak laid floor, integrated tender crane (700kg), pantograph step passarelle, up/down swimming platform, parasol.

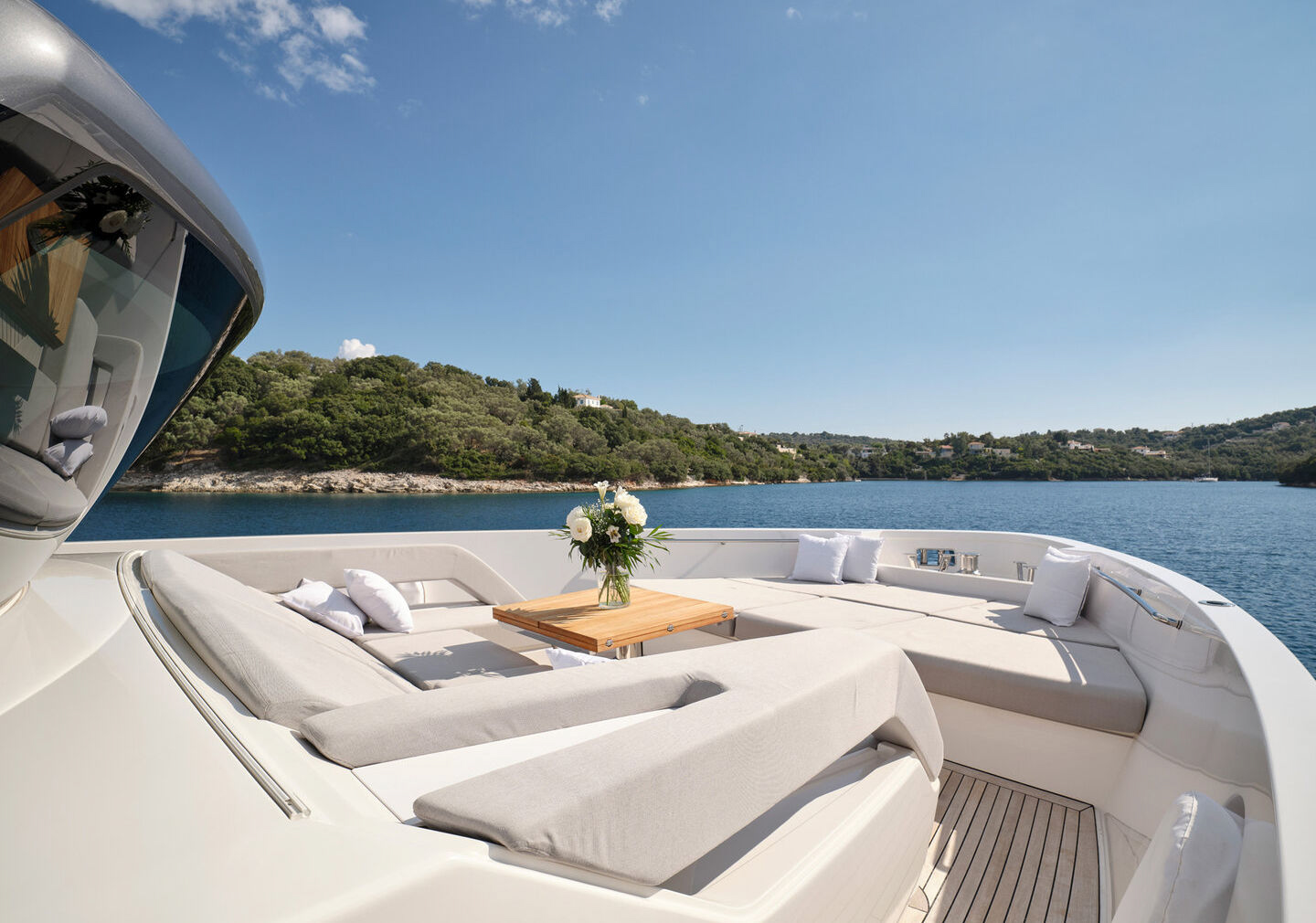

Bow Area - Teak floor, sofa around teak table, sunbeds and sun awning

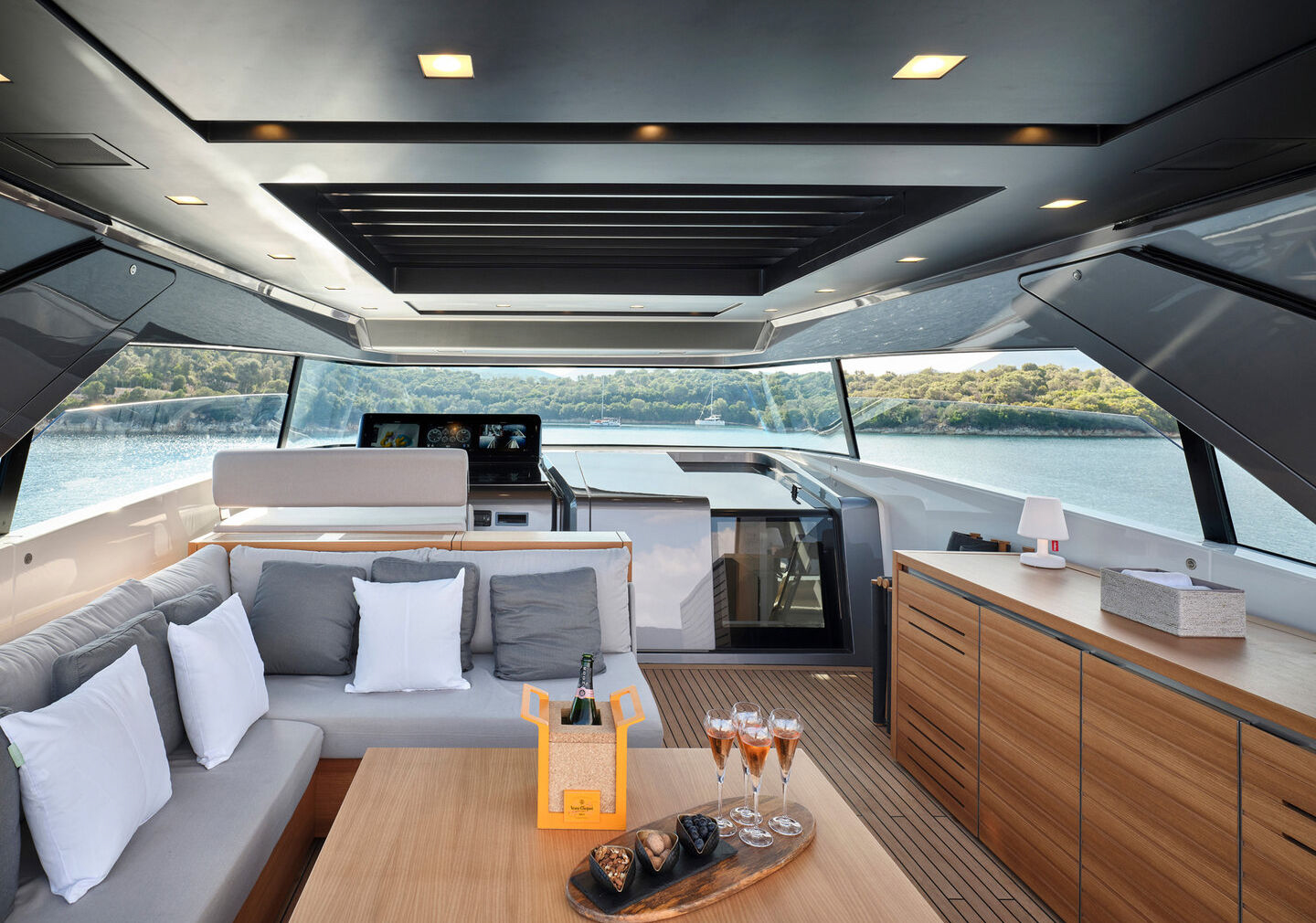

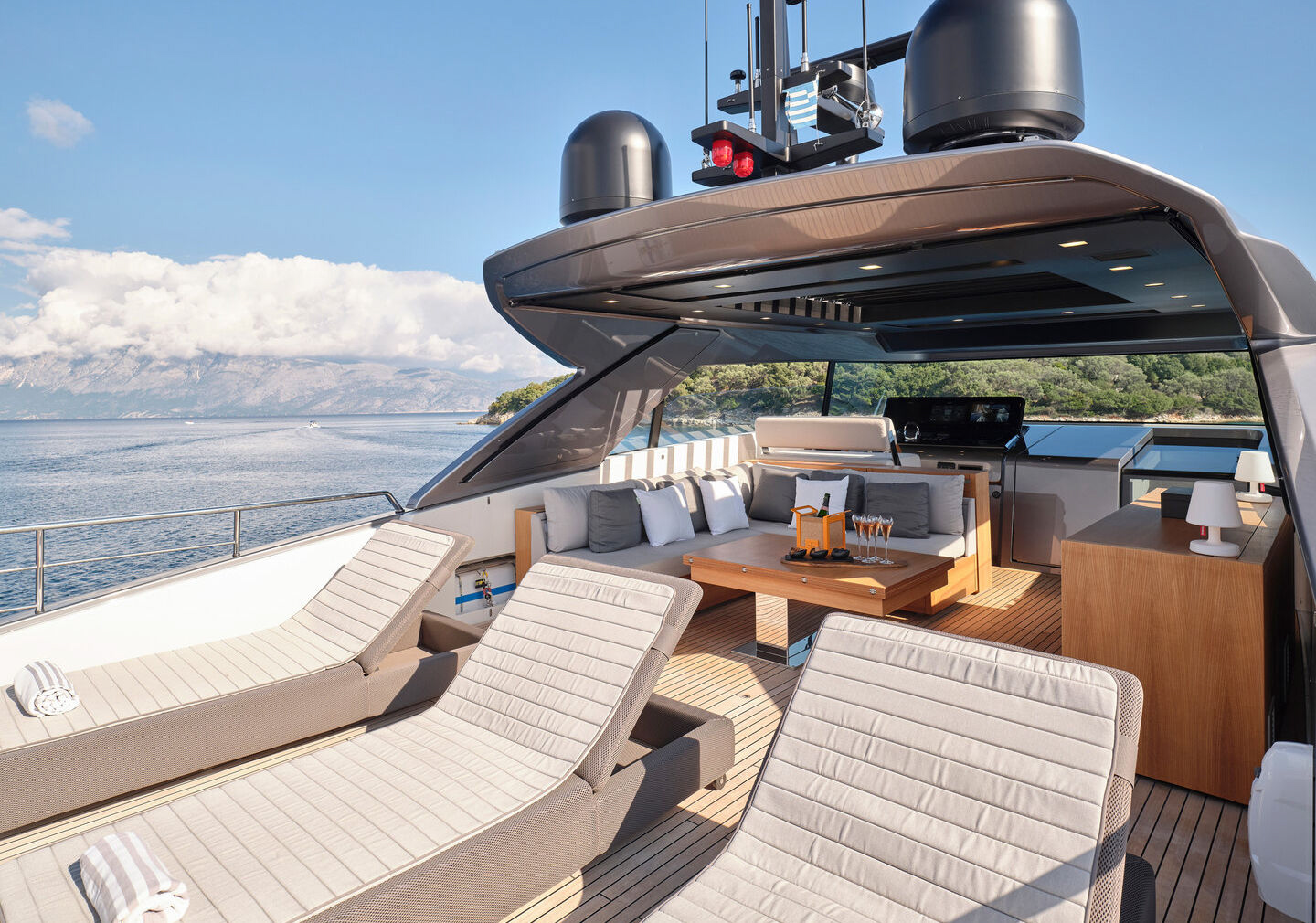

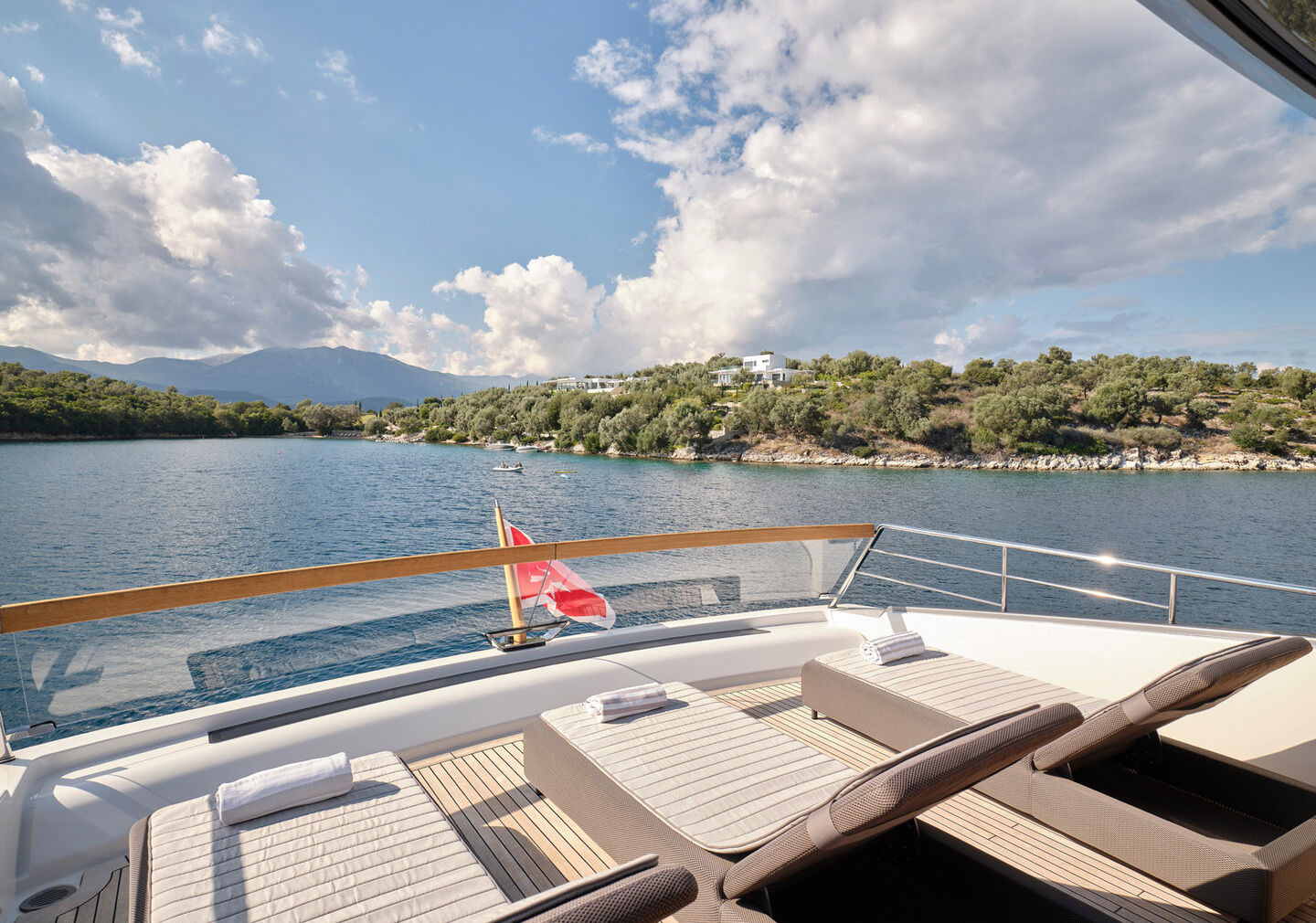

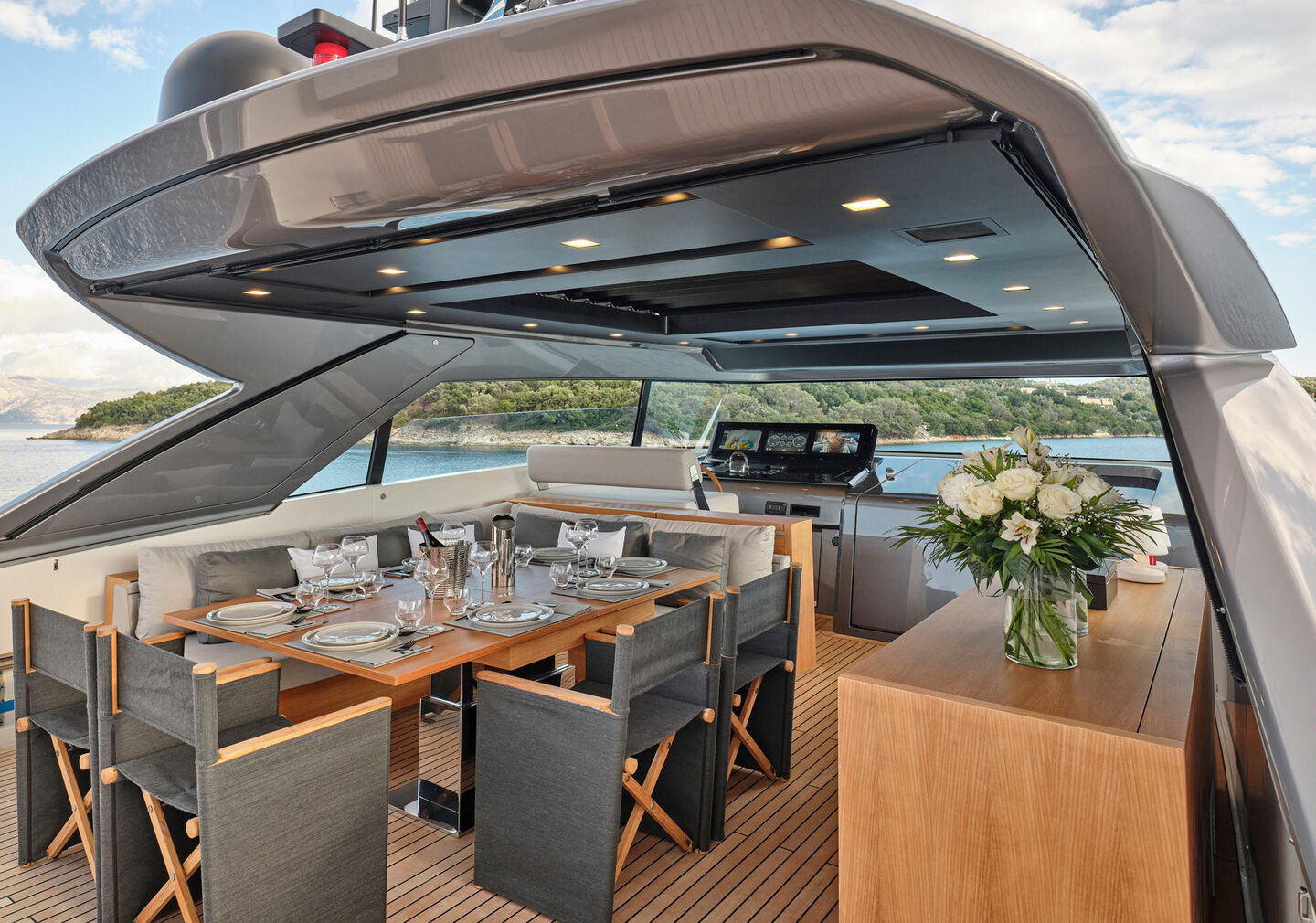

Flybridge - The flybridge is reached through an internal staircase coming up from the main deck on starboard side and is laid in teak deck. Fitted with custom L-shaped teak sofa with electric up/down teak table and four folding Roda chairs, hardtop with blade opening roof, electric opening side windows, aft area sun awning, wetbar cabinet with fridge, BBQ, icemaker, sink & waterproof socket, and three Roda Double sunbeds with two coffee tables to aft fly area. Helm station with pilot seat for two, engine controls, navigation instruments and engine instruments
Air-conditioning system throughout (95.5k btu) with temperature control panels in each area
NAVIGATION EQUIPMENT
Raymarine diamond navigation system
Flybridge helm station
- Three 12” multi-function displays
- Raymarine integrated ship-monitoring system
- Speed, depth, wind and temperature indicator
- Rudder angle indicator
- Autopilot
- VHF
- Waterproof USB point
Mounted on hardtop arch
- GPS antenna
- Open array radar 48” – 72 Nm.
- VHF aerial
- AIS aerial
- Signalling horn.
- Wind transducer
AUDIO & VISUAL EQUIPMENT - Silver package
Saloon - 50” LED TV; Hi-Fi, CD/DVD/Bluray reader, 4 speakers and subwoofer with cockpit connection.
Owner’s Cabin - TV led 43”; Hi-Fi, CD/DVD/Bluray reader, 2 speakers and subwoofer.
VIP Cabin - TV led 32”, stereo with 2 speakers.
Guest Cabin’s - 24" LED TV's, and stereo with 2 speakers
Flybridge - Marine Stereo with 4 speakers
Bow area - Stereo with 2 speakers connected to flybridge
Cockpit & Beach Club - Two speakers recessed into the cockpit ceiling, connected to the saloon HI/FI system & two speakers recessed into the sides of the beach area connected to the cockpit
KVH TV6 TV-Sat antenna and dummy dome
MOORING & ANCHORING
Electric reversible anchor windlass 2300W
Foot switch for capstan
90kg Galvanised steel anchor with 100m of 12mm chain
Chain washing system
Two aft electrical capstans 1700W
One 2000W capstan to bow
Fenders with socks and mooring warps
GENERAL EQUIPMENT
Electric side opening windows on Flybridge
Air conditioning on Flybridge
Electro-hydraulic passarelle/swimming ladder - teak with stainless steel frame
Hydraulic swimming platform
Electric-hydraulic tender launch crane system (700kg)
Protection covers for all exterior furniture and seating
CCTV camera system - cockpit and engine room camera
Idromar watermaker - 180l/hr
Sun awning for aft of fly
Sun awning for the bow
Parasol to beach club with two deck locators
Four underwater lights – two on transom, two on side of hull aft
Pre-wire for backlit boat name
Black signal ball
Radar reflector
Two wooden/stainless boat hooks
Tender chocks with tie downs
SAFETY EQUIPMENT
Bilge pump system – manual & automatic
Two 8 person life rafts with hydrostatic hooks
FM200 fire suppression system to engine room
Fire blanket
First aid kit
Buoy ring with line 30m
TWIN VOLVO PENTA IPS1200 D13-900HP
IPS Drive to propellers
Hours run approx. 500
Maximum speed approx. 22 knots
Cruising speed approx. 16 knots
Economical speed approx. 11 knots
Max range at economical speed approx. 615 NM
Electric bowthruster
Trim tabs
Additional Volvo IPS joystick and thruster control to cockpit station
CMC Electric stabiliser fins with zero speed function
TANKAGE & WATER SYSTEM
Fuel capacity - 4,350 l
Fresh water capacity - 1,250 l
Stainless steel 100 l hot water tank
Grey water tank capacity - 400 l
Black water tank capacity - 400 l
Idromar watermaker 180l/hr
ELECTRICAL SYSTEMS
UK plug sockets throughout
230V AC single phase, 50 Hz for main power circuits
24V DC for small power circuits, visual signals, emergency lighting, electronics, communication systems and main engine start up.
12V DC for main generator start up and VHF
Two Kohler 28 kw generators - approx. 1020 hours
Two 230v 63A shore power connections with cables
Batteries - service, engine starting, generator start and bow-thruster
Batteries charged by Mastervolt battery chargers and alternators
24V/230V 1500W inverter for galley fridge/freezer
Additional Mastervolt battery charger for generator
